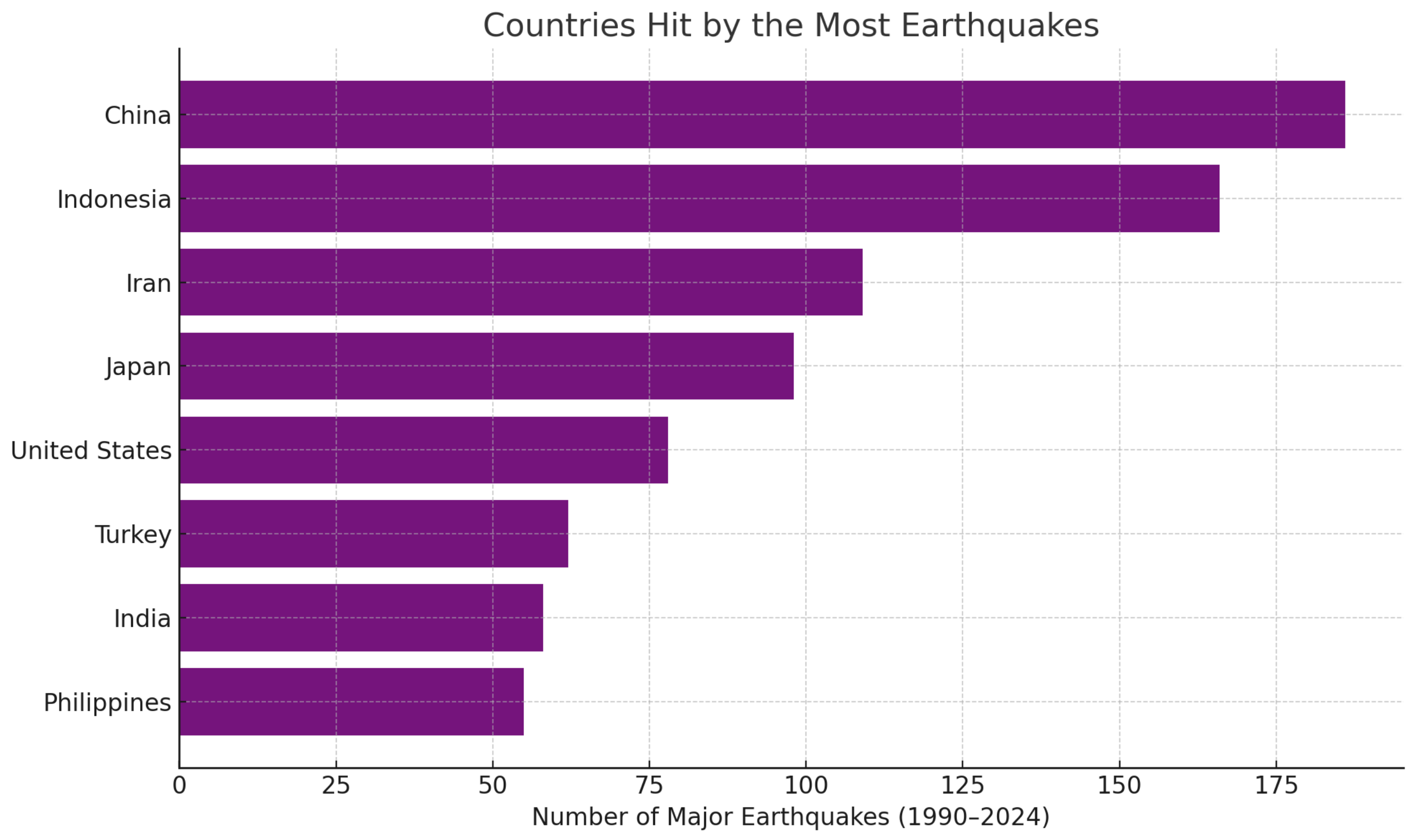

The following chart shows the countries hit by most earthquakes between 1990 to 2024
Identify the country with the highest number of major earthquakes between 1990 and 2024.
China
State how many major earthquakes affected the Philippines during this period.
55
Accept 53-56
Outline one scale used to measure the magnitude of one named hazard type.
-
Identification of a suitable scale (e.g., Richter, Momentum magnitude, VEI, Saffir–Simpson, drought intensity index)
1 mark -
Further development of the chosen scale
1 mark
Example:
-
The Richter scale is used to measure the magnitude of an earthquake
-
It is a logarithmic scale
Explain two reasons why some countries experience more major earthquakes than others.
Answers may include but are not limited to:
Tectonic Plate Boundaries and Plate Interaction
- Countries located along active tectonic plate boundaries, especially convergent and transform boundaries, experience more seismic activity due to the build-up and release of pressure between plates.
- Example: Japan lies at the intersection of the Pacific, Philippine, and Eurasian plates, making it highly prone to major earthquakes.
- Impact: Frequent plate movement leads to regular, high-magnitude seismic events.
Geological Structure and Crustal Weakness
- Some regions have fault lines and weaker crustal zones, even within tectonic plates, that are more susceptible to earthquakes.
- Example: The Himalayan region, including Nepal, experiences major quakes due to the ongoing collision of the Indian and Eurasian plates, which deforms and fractures the crust.
- Impact: Long-term tectonic compression leads to accumulated strain and sudden, powerful quakes.
Marking Guidance
1–2 marks per explanation: Identifies a valid reason with basic description.3 marks per explanation: Provides a clear explanation, includes a specific example, and explains how the factor leads to greater earthquake frequency or intensity.
Discuss why some hazard events are easier to predict than others.
Awards may include but are not limited to:
-
Hazard prediction involves three aspects: location, timing, and magnitude.
-
Location prediction:
- Generally more predictable
- Based on historical patterns and physical factors
- Examples:
- Earthquakes and volcanic activity mapped in relation to plate margins
- Droughts and hurricanes linked to atmospheric conditions
-
Timing and magnitude prediction:
- More challenging than location prediction
- Varies by hazard type:
- Volcanic hazard: Easier to predict using instrumentation (ground movements, gas emissions)
- Earthquakes: Difficult to predict timing and strength with current technology
- Atmospheric hazard (e.g., hurricanes): Predictable with some certainty as they develop
-
Recurrence intervals:
- Calculated using past records of timing and magnitude
- Reliability depends on length and accuracy of historical data
- Challenging for high magnitude/low frequency events
-
Factors affecting predictability:
- Data collection accuracy
- Understanding of geophysical and atmospheric processes
- Inherent uncertainty and risk in all predictions
-
Comparison of hazard types:
- Tectonic vs. atmospheric hazard predictability
- Varies based on available data and understanding of processes
Marks | Overall Description |
---|---|
0 | The work does not reach a standard described by the descriptors below. |
1-2 | • Response is too brief, lists unconnected information, not focused on question and lacks structure • Very brief or descriptive, listing unconnected comments or irrelevant information • Very general knowledge with large gaps or errors • Examples/case studies absent or only listed • No evidence of analysis • Terminology missing, undefined, irrelevant or incorrect • No evaluation or conclusion expected • Information not grouped logically • Maps/graphs/diagrams absent, irrelevant or unclear |
3-4 | • Response is too general, lacks detail, not focused on question and largely unstructured • Very general response • Outlines relevant and irrelevant examples, statistics, facts • Links to question merely listed • Analysis not relevant • Basic terminology used with errors or inconsistently • Irrelevant conclusion • No critical evaluation of evidence • Information not logically grouped • Maps/graphs lack detail or incorrectly interpreted |
5-6 | • Response partially addresses question, with narrow argument, unsubstantiated conclusion, and limited evaluation • Describes relevant supporting evidence • Outlines appropriate links to question • Partially addresses question or repeats one point • Relevant terminology used with minor errors • General conclusions, misaligned with evidence • Other perspectives/strengths/weaknesses listed • Some logical grouping but inconsistent • Maps/graphs don't follow conventions |
7-8 | • Response addresses whole question, evaluated analysis and relevant but unbalanced conclusion • Describes correct relevant evidence covering all main points • Describes appropriate links • Clear but one-sided analysis • Complex terminology correct but inconsistent • Relevant but unbalanced conclusion • Other perspectives described • Consistent logical grouping • Maps/graphs support analysis |
9-10 | • Response is in-depth and question-specific; justified analysis and conclusion through well-developed evaluation • Explains integrated examples, statistics, details • Explains appropriate links • Balanced analysis discussing complexity • Complex terminology used correctly throughout • Balanced conclusion aligned with evidence • Systematic evaluation of perspectives • Discusses strengths/weaknesses • Logically structured • Maps/graphs properly annotated and support argument |
