Question 1

SLPaper 1

Consider the function $f(x)=1-x^{2}$ , for $-2 \leq x \leq 2$ .

Find the values of $x$ for which $f(x)=0$ .

[2]

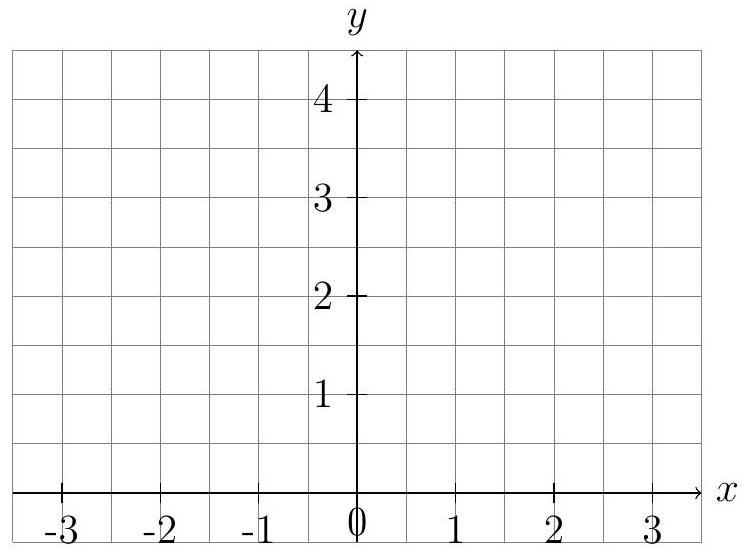

Sketch the graph of $f$ on the grid provided below.

[3]

Question 2

SLPaper 1

Consider the function $f(x)=\frac{3 x+2}{x-2}$ , where $x \in \mathbb{R}, x \neq 2$ . The graph of $y=f(x)$ has a vertical asymptote and a horizontal asymptote.

State the equation of the vertical asymptote.

[1]

State the equation of the horizontal asymptote.

[1]

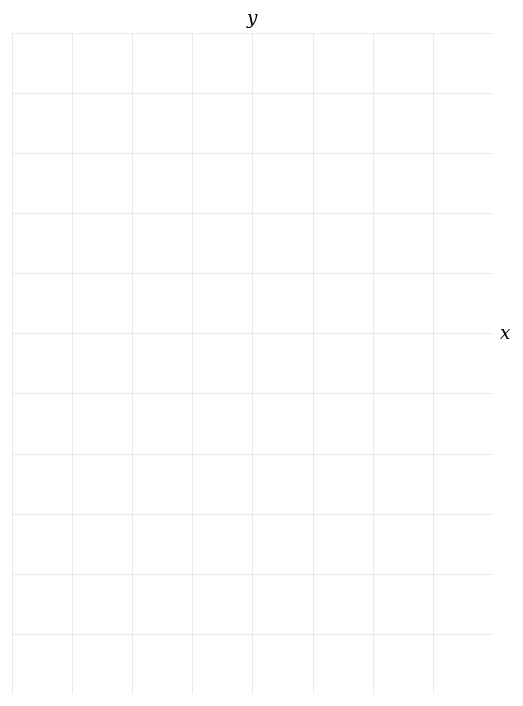

On the set of axes below, sketch the graph of $y=f(x)$ .

Clearly show the asymptotes and any points where the graph intersects the axes.

[3]

Hence, solve the inequality $0<\frac{3 x+2}{x-2} \leq 1$ .

[2]

Question 3

SLPaper 1

Consider the quadratic function $h(t)=a t^{2}+c$ , where $t, a, c \in \mathbb{R}$ . The point (2, 7) lies on the graph of $h$ .

Find the values of $a$ and $c$ , given that the vertex of the parabola is at ( 0,3 ). marks]

[3]

The graph of $f(t)=t^{2}$ is transformed to obtain the graph of $h$ . Describe the transformation in terms of scaling and translation.

[3]

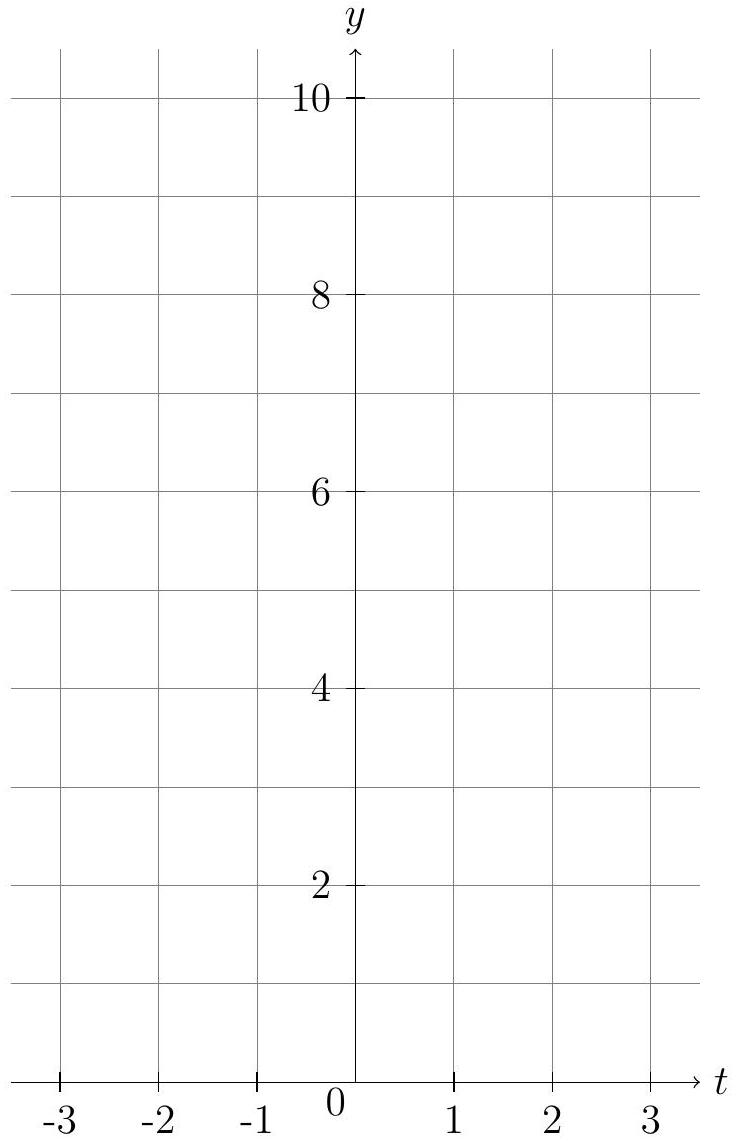

On the axes below, sketch the graph of $y=h(t)$ for $-3 \leq t \leq 3$ and $0 \leq y \leq 10$ . Clearly show the vertex and the point $(2,7)$ .

[3]

Question 4

SLPaper 1

Consider the function $f(x)=4-x^{2}$ , for $-3 \leq x \leq 3$ .

Find the values of $x$ for which $f(x)=0$ .

[2]

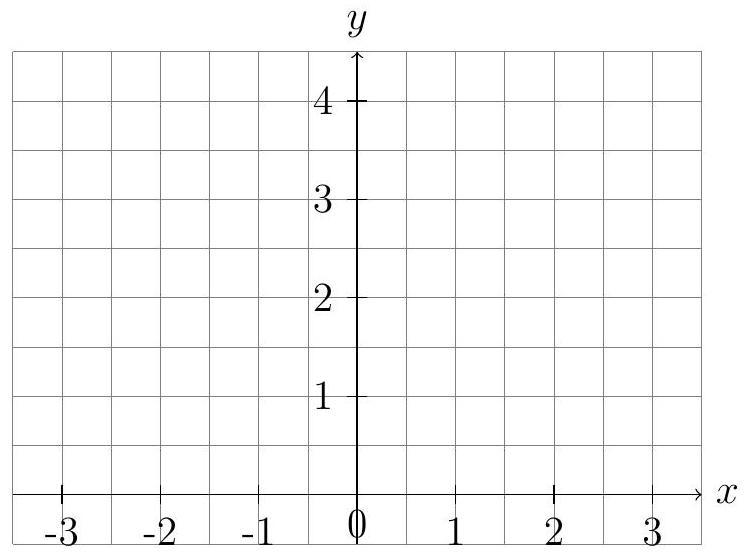

Sketch the graph of $f$ on the grid provided below.

[3]

Question 5

SLPaper 2

A quadratic model $f(x)=ax^2+bx+c$ is fitted to three measured points $P(1,0.5+\ln 6)$ , $Q(3,1.5+\ln 9)$ , $R(6,\ln 5)$ .

Determine $a,b,c$ (numerically). Give your values correct to 3 significant figures.

[5]

Write $f(x)$ in vertex form $f(x)=a(x-h)^2+k$ . Hence state the vertex and the range of $f$ . Give $h,k$ to 3 d.p.

[4]

Let $g(x)=\ln(x+2)+1$ . Solve $f(x)=g(x)$ for $x\ge 0$ to 3 d.p., and justify the number of solutions.

[6]

Solve $f(x)\ge g(x)$ for $x\ge 0$ .

[3]

Question 6

SLPaper 2

Let $f(x)=e^{kx},\quad g(x)=\ln(x+9),\quad x>-9,\ k>0.$ It is given that $(f\circ g)(1)=7$ .

Determine $k$ correct to 3 significant figures.

[3]

Find the composites and their maximal domains.

[4]

Solve $(x+9)^k=\ln(9+e^{kx})$ for $x\ge0$ (3 d.p.) and justify uniqueness.

[7]

Find $(f\circ g)^{-1}(y)$ and state domain/range.

[4]

Question 7

SLPaper 2

Consider the function $f(x)=\sin (x)+\frac{x}{2}$ , for $x(0<x<2 \pi)$ .

Find the coordinates of the local maximum of the graph of $y=f(x)$ , giving the $x$ tothreedecimalplaces.

[4]

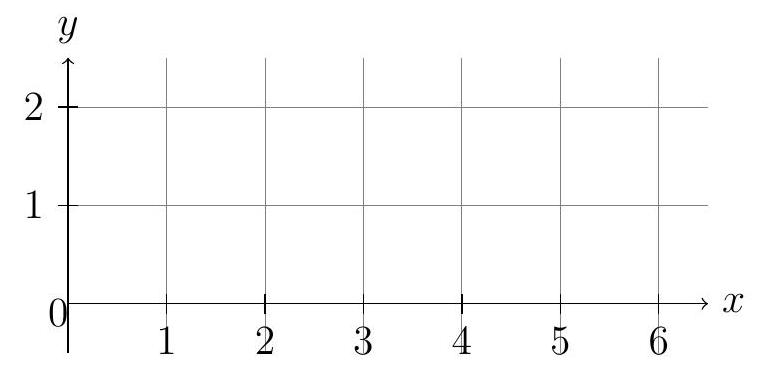

On the axes below, sketch the graph of $y=f(x)$ for $0<x<2 \pi$ , showing clearly the local maximum, any axis intercepts, and the behavior as $x \rightarrow 0^{+}$ and $x \rightarrow 2 \pi^{-}$ .

[4]

Hence, or otherwise, solve the inequality $f(x)>1$ for $0<x<2 \pi$ , giving your answer

[3]

Question 8

SLPaper 2

A rational function has vertical asymptote $x=4$ and horizontal asymptote $y=1$ . It passes through $(0,-1)$ and $(5,9)$ .

Show $f(x)=1+\dfrac{k}{x-4}$ and determine $k$ . Hence express $f(x)=\dfrac{ax+b}{cx+d}$ with integers.

[4]

Determine domain, range, intercepts, asymptotes, and the sign of $f(x)-1$ on $(- \infty,4)$ , $(4,\infty)$ .

[5]

Solve $f(x)=g(x)$ to 3 d.p. and justify one solution in each of $(-1,4)$ and $(4,\infty)$ .

[6]

Describe the transformations from $y=1/x$ to $y=f(x)$ .

[2]

Question 9

SLPaper 2

A rational function has vertical asymptote $x=4$ and horizontal asymptote $y=7$ . It passes through the points $(0,5)$ and $(6,11)$ .

Show that the function can be written in the form $f(x)=7+\frac{k}{x-4}$ for some constant $k$ , and determine $k$ . Hence write $f(x)$ explicitly as $\dfrac{ax+b}{cx+d}$ with integer coefficients.

[4]

Determine all key features of $f$ : domain, range, intercepts, asymptotes, and the sign of $f(x)-7$ on $(- \infty,4)$ and $(4,\infty)$ .

[5]

Solve $f(x)=g(x)$ to three decimal places and justify exactly one solution in each of $(-1,4)$ and $(4,\infty)$ .

[6]

Describe transformations mapping $y=1/x$ to $y=f(x)$ .

[2]

Question 10

SLPaper 2

A quadratic model $f(x)=ax^2+bx+c$ is fitted to three measured points $P(1,1+\ln 2)$ , $Q(3,e)$ , $R(6,\ln 2)$ .

Determine $a,b,c$ (numerically). Give your values correct to 3 significant figures.

[5]

Write $f(x)$ in vertex form $f(x)=a(x-h)^2+k$ . Hence state the vertex and the range of $f$ . Give $h,k$ to 3 d.p.

[4]

Let $g(x)=\ln(x+2)+1$ . Solve $f(x)=g(x)$ for $x\ge 0$ to 3 d.p., and justify the number of solutions.

[6]

Solve $f(x)\ge g(x)$ for $x\ge 0$ .

[3]
