Question 1

HLPaper 1

Consider the functions $f(x)=|\ln | \frac{x}{x-k}| |, x \in \mathbb{R} \backslash\{0, k\}$ , and $g(x)=\arctan (|x-2 k|)$ , $x \in \mathbb{R}$ , where $k \in \mathbb{R}, k>3$ . The graphs of $y=f(x)$ and $y=g(x)$ intersect at a point $P$ .

Describe the transformation that maps the graph of $y=\ln \left|\frac{x}{x-1}\right|$ to $y=\ln \left|\frac{x}{x-k}\right|$ .

[2]

State the range of $f$ .

[2]

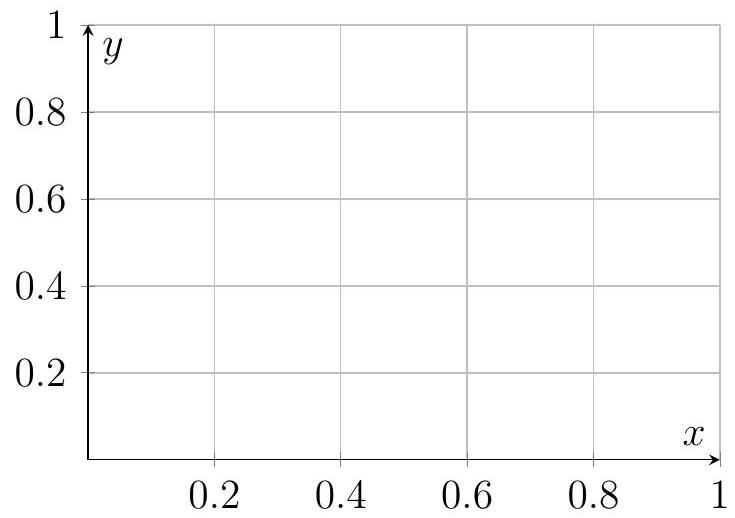

On the set of axes below, sketch the graphs of $y=f(x)$ and $y=g(x)$ . Clearly indicate any asymptotes, points of intersection with the axes, and the coordinates of point $P$ .

[6]

Find the coordinates of $P$ .

[3]

Find $\int f(x) \sin x d x$ .

[4]

Question 2

HLPaper 2

Let $f(x)=\left|x^{2}-2 k x+k^{2}\right|, x \in \mathbb{R}$ , and $g(x)=\frac{1}{\left|\frac{x-k}{x+k}\right|+1}, x \in \mathbb{R} \backslash\{-k\}$ , where $k>2$ . The function $h$ is defined as $h(x)=\arctan (f(x))$ .

Express $f(x)$ in the form

f(x)= \begin{cases}a x^{2}+b x+c & \text { if } x<k \\ d & \text { if } x=k \\ e x^{2}+f x+g & \text { if } x>k\end{cases}

[3]

Find the equations of the vertical and horizontal asymptotes of $y=g(x)$ .

[2]

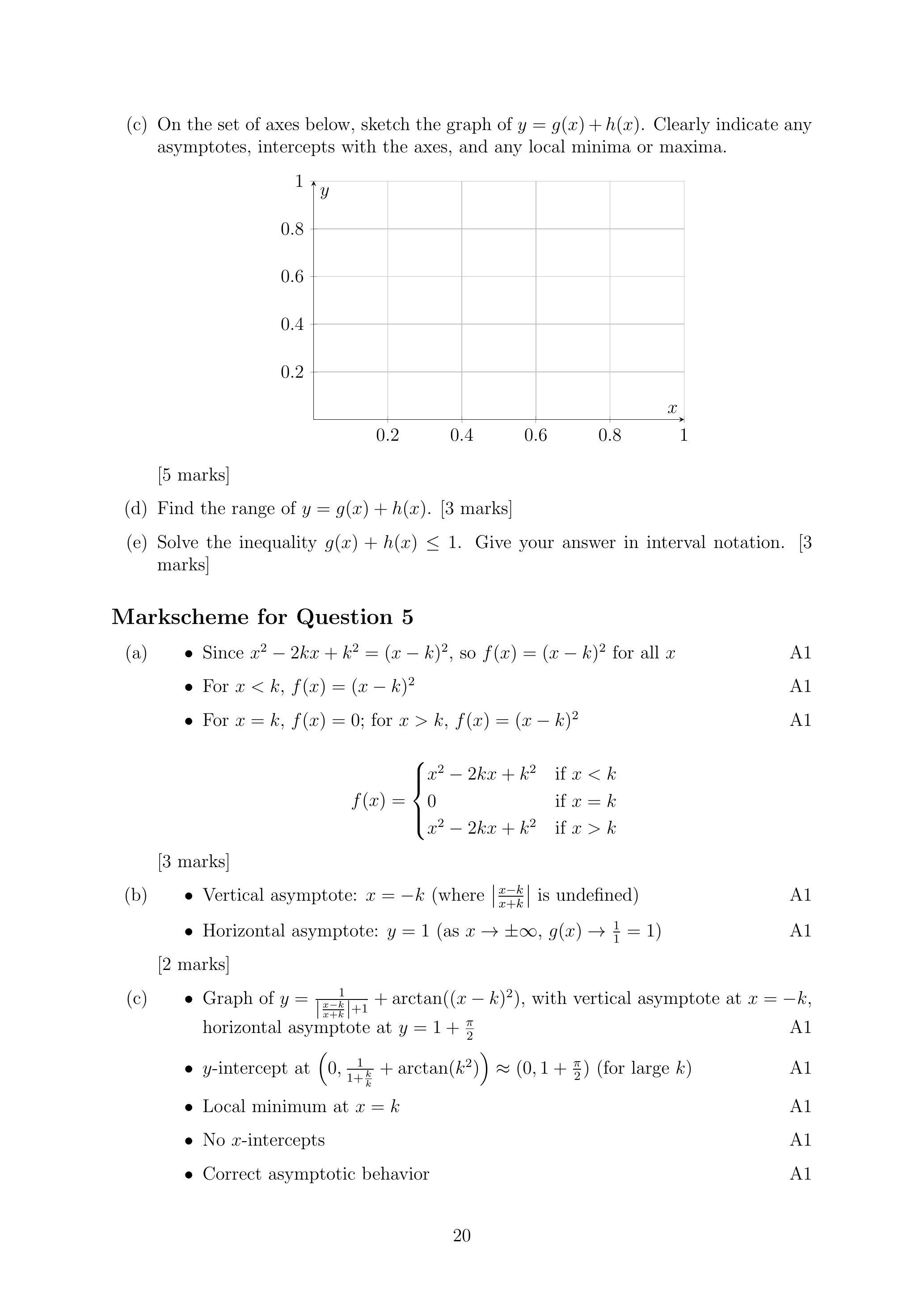

On the set of axes below, sketch the graph of $y=g(x)+h(x)$ . Clearly indicate any asymptotes, intercepts with the axes, and any local minima or maxima.

[5]

Find the range of $y=g(x)+h(x)$ .

[3]

Solve the inequality $g(x)+h(x) \leq 1$ . Give your answer in interval notation.

[3]

Question 3

HLPaper 1

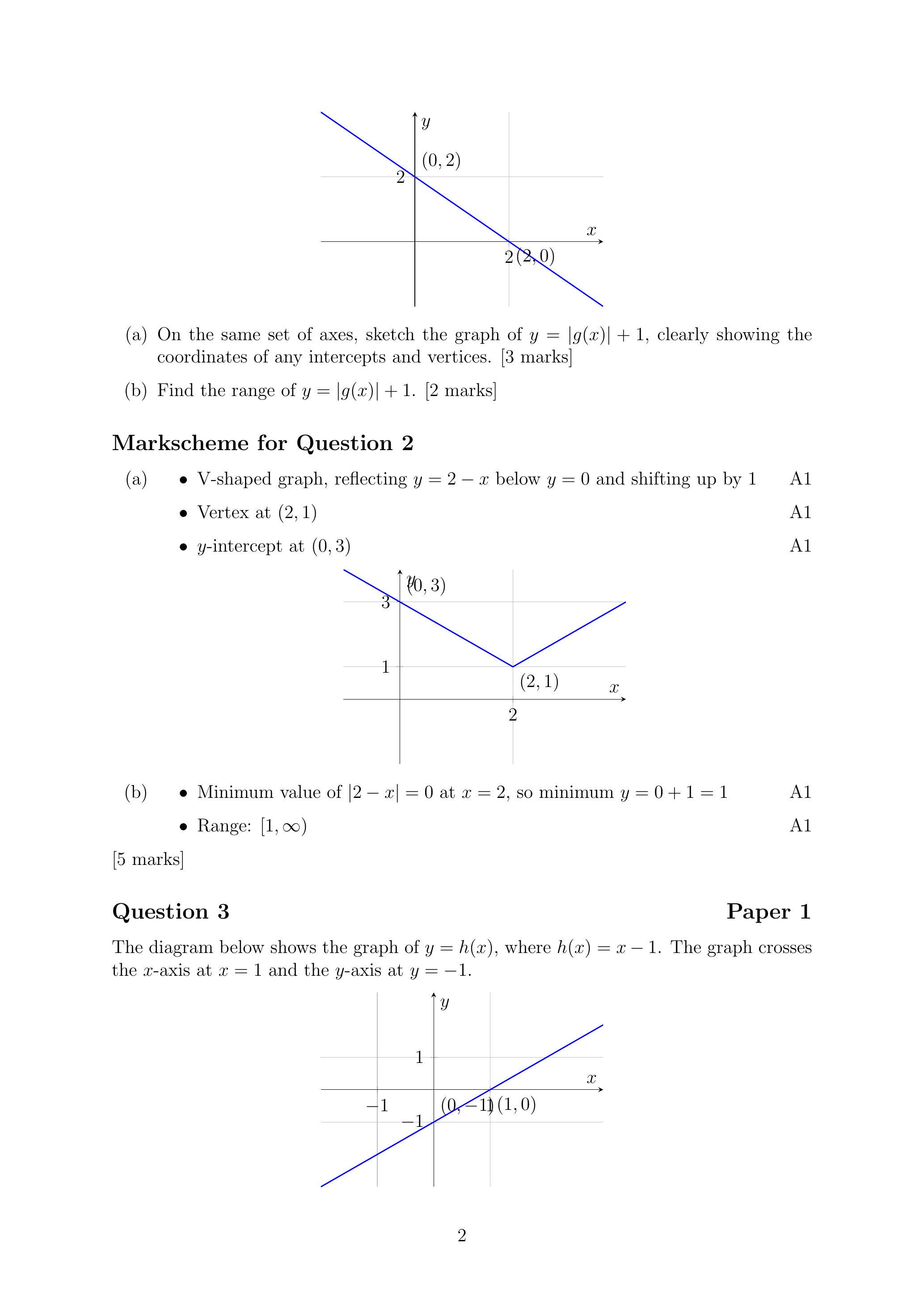

The diagram below shows the graph of $y=h(x)$ , where $h(x)=x-1$ . The graph crosses the $x$ -axis at $x=1$ and the $y$ -axis at $y=-1$ .

On the same set of axes, sketch the graph of $y=|h(x)|-1$ , clearly showing the coordinates of any intercepts and vertices.

[3]

Solve the equation $|h(x)|=1$ , giving exact solutions.

[2]

Question 4

HLPaper 1

Let $f(x)=|2 x+1|-3, x \in \mathbb{R}$ .

Sketch the graph of $y=f(x)$ on the axes below. Clearly indicate any intercepts with the axes and the vertex of the graph.

[3]

Write down the range of $f$ .

[2]

Express $f(x)$ in the form

f(x)= \begin{cases}a x+b & \text { if } x<-\frac{1}{2} \\ c & \text { if } x=-\frac{1}{2} \\ d x+e & \text { if } x>-\frac{1}{2}\end{cases}

[3]

Solve the inequality $f(x) \geq-1$ .

[2]

Question 5

HLPaper 1

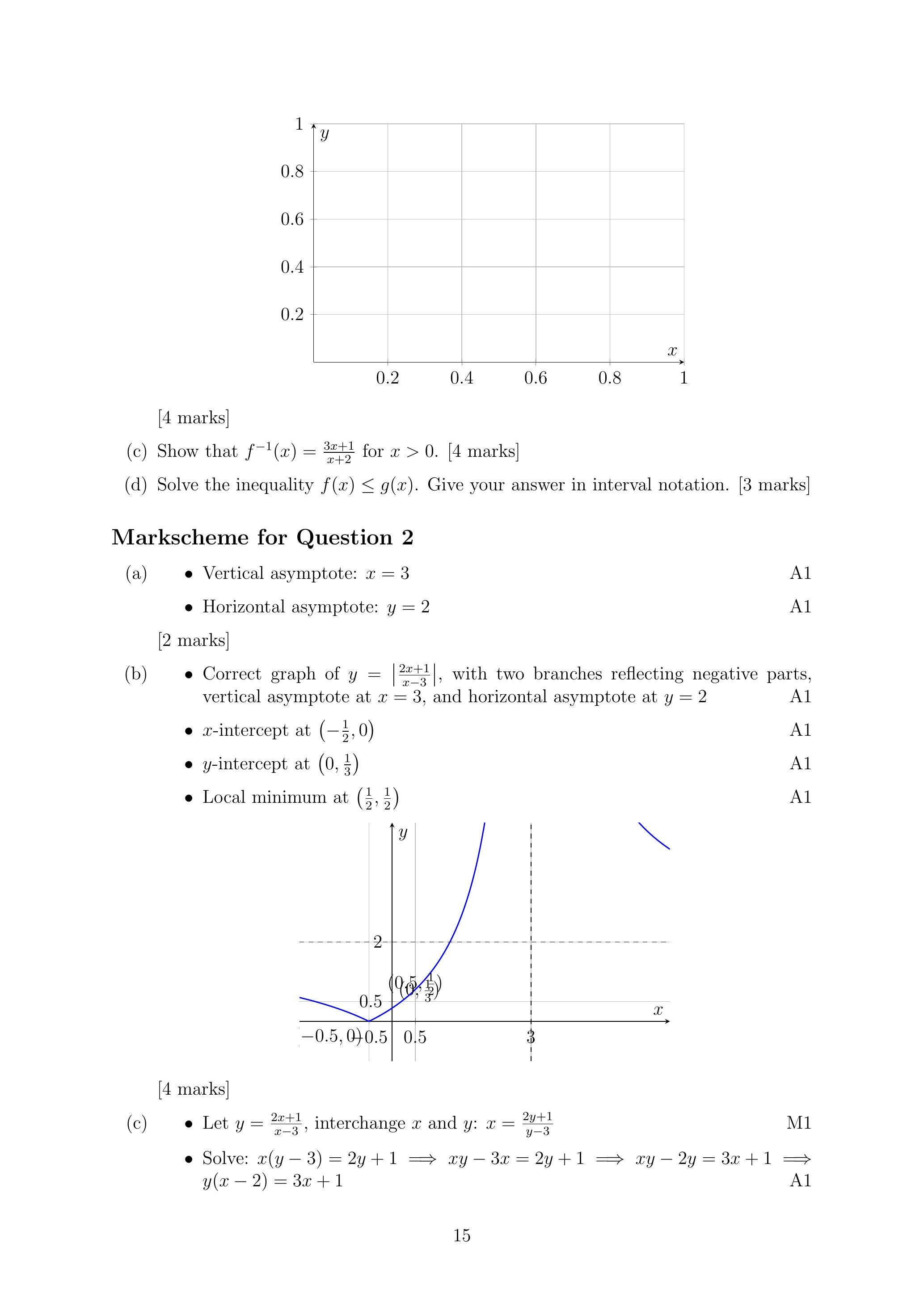

Let $f(x)=\left|\frac{2 x+1}{x-3}\right|, x \in \mathbb{R} \backslash\{3\}$ , and $g(x)=\arctan (|x-1|), x \in \mathbb{R}$ . The inverse of $f$ restricted to $x>3$ is $f^{-1}$ .

Find the equations of the vertical and horizontal asymptotes of $y=f(x)$ .

[2]

On the set of axes below, sketch the graph of $y=f(x)$ . Clearly indicate the asymptotes, any points of intersection with the axes, and any local minima or maxima.

[4]

Show that $f^{-1}(x)=\frac{3 x+1}{x+2}$ for $x>0$ .

[4]

Solve the inequality $f(x) \leq g(x)$ . Give your answer in interval notation.

[3]

Question 6

HLPaper 2

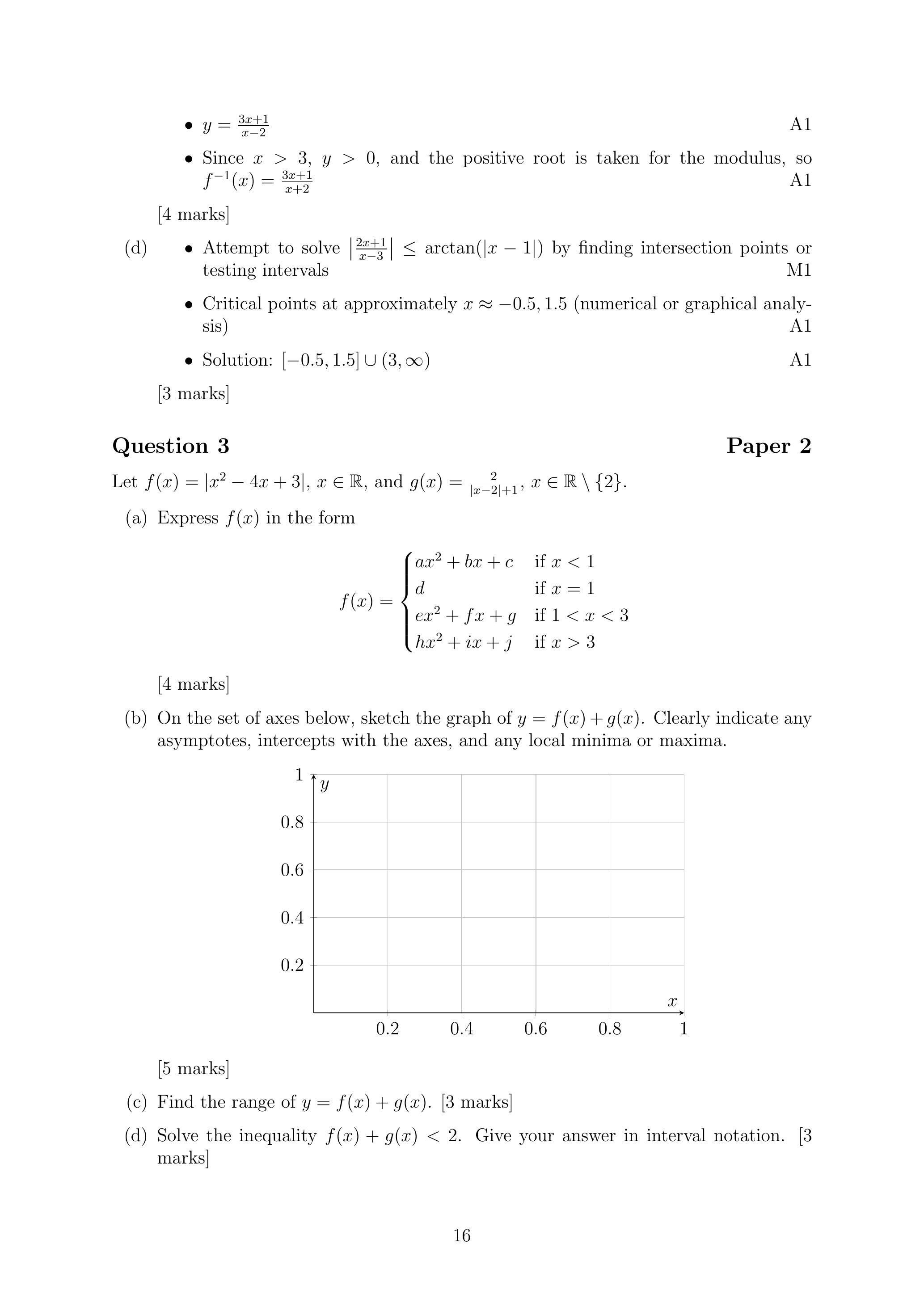

Let $f(x)=\left|x^{2}-4 x+3\right|, x \in \mathbb{R}$ , and $g(x)=\frac{2}{|x-2|+1}, x \in \mathbb{R}$ .

Express $f(x)$ in the form

f(x)= \begin{cases}a x^{2}+b x+c & \text { if } x<1 \\ d & \text { if } x=1 \\ e x^{2}+f x+g & \text { if } 1<x<3 \\ h x^{2}+i x+j & \text { if } x>3\end{cases}

[4]

On the set of axes below, sketch the graph of $y=f(x)+g(x)$ . Clearly indicate any asymptotes, intercepts with the axes, and any local minima or maxima.

[5]

Find the range of $y=f(x)+g(x)$ .

[3]

Solve the inequality $f(x)+g(x)<2$ . Give your answer in interval notation.

[3]

Question 7

HLPaper 2

A function $g$ is defined by $g(x)=\frac{2 x-3}{x+1}$ , where $x \in \mathbb{R}, x \neq-1$ .

Find the equations of the vertical and horizontal asymptotes of the graph of $y=$ $g(x)$ .

[2]

On the set of axes below, sketch the graph of $y=|g(x)|+1$ . Clearly indicate the asymptotes, any points of intersection with the axes, and any local minima or maxima.

[3]

Solve the inequality $|g(x)|+1 \geq 3$ . Give your answer in interval notation.

[2]

Question 8

HLPaper 1

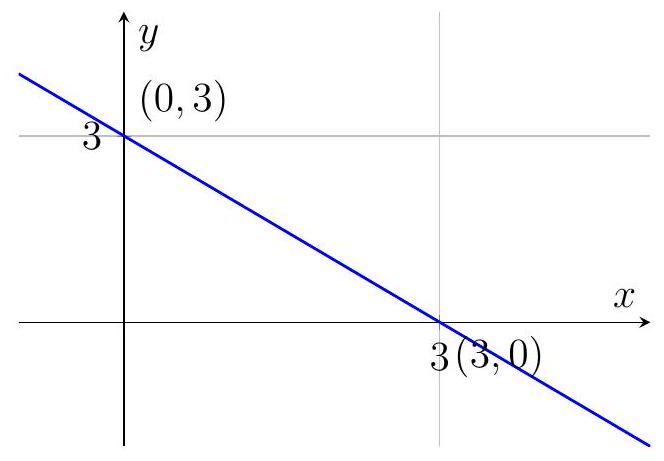

The diagram below shows the graph of $y=k(x)$ , where $k(x)=-x+3$ . The graph crosses the $x$ -axis at $x=3$ and the $y$ -axis at $y=3$ .

On the same set of axes, sketch the graph of $y=2|k(x)|$ , clearly showing the coordinates of any intercepts and vertices.

[3]

Solve the inequality $2|k(x)|<6$ , giving your answer in interval notation.

[2]

Question 9

HLPaper 1

Consider the functions $f(x)=\ln |x-1|, x \in \mathbb{R} \backslash\{1\}$ , and $g(x)=\ln |x-k|, x \in \mathbb{R} \backslash\{k\}$ , where $k \in \mathbb{R}, k>3$ .

The graphs of $y=f(x)$ and $y=g(x)$ intersect at the point $P$ .

Describe the transformation that maps the graph of $y=f(x)$ to $y=g(x)$ .

[1]

State the range of $g$ .

[1]

On the set of axes below, sketch the graphs of $y=f(x)$ and $y=g(x)$ . Clearly indicate the asymptotes and the coordinates of any points of intersection with the axes.

[4]

Find the coordinates of the point $P$ .

[2]

Question 10

HLPaper 1

The diagram below shows the graph of $y=f(x)$ , where $f(x)=x+2$ . The graph crosses the $x$ -axis at $x=-2$ and the $y$ -axis at $y=2$ .

On the same set of axes, sketch the graph of $y=|f(x)|$ , clearly showing the coordinates of any intercepts and vertices.

[3]

Solve the inequality $|f(x)| \leq 2$ , giving your answer in interval notation.

[2]
