Voronoi Diagrams: A Mathematical Tool for Spatial Analysis
Voronoi diagrams, named after the Russian mathematician Georgy Voronoi, are a fascinating mathematical construct that divides a plane into regions based on proximity to a set of points.
NoteThese diagrams have found applications in various fields, from urban planning to ecology, and are a key topic in computational geometry.
Key Components of Voronoi Diagrams
A Voronoi diagram consists of several essential elements:
- Sites: These are the initial set of points in the plane around which the diagram is constructed.
- Cells: Each site has a corresponding cell, which is the region of the plane closest to that site.
- Edges: These are the boundaries between cells, equidistant from two adjacent sites.
- Vertices: Points where three or more edges meet.
Imagine a city with five fire stations. A Voronoi diagram of this scenario would divide the city into five regions, each containing all points closer to one fire station than to any other. The fire stations would be the sites, and the regions would be the cells.

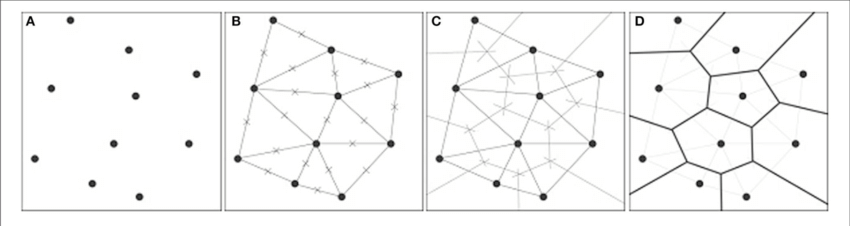

Adding a Site to an Existing Voronoi Diagram
When a new site is added to an existing Voronoi diagram, it creates a new cell by "stealing" area from the surrounding cells. This process involves:
- Identifying the cell in which the new site falls
- Creating new edges by connecting perpendicular bisectors between the new site and surrounding sites
- Adjusting existing edges and vertices
The addition of a new site only affects its immediate neighborhood in the diagram, not the entire structure.
Nearest Neighbor Interpolation
- Nearest neighbor interpolation is a simple method for estimating values at unknown points based on known values at nearby points.
In the context of Voronoi diagrams:
- Each cell in the diagram is assigned the value of its site
- Any point within a cell is given the same value as the site of that cell
This method is particularly useful in applications like weather forecasting or geological surveys where data is collected at discrete points but estimates are needed for continuous areas.
ExampleIn a temperature map, if we have temperature readings at specific weather stations (sites), we can use nearest neighbor interpolation to estimate the temperature at any point by assigning it the temperature of the closest weather station.
The "Toxic Waste Dump" Problem
- The "toxic waste dump" problem is a classic application of Voronoi diagrams in environmental planning.
- The problem involves finding the optimal location for a toxic waste dump that is as far away as possible from a set of populated areas.
Solution steps:
- Create a Voronoi diagram with populated areas as sites
- Identify the vertices of the Voronoi diagram
- The vertex that is equidistant from three or more sites is the optimal location for the dump
This solution ensures that the dump is placed at the point that maximizes its distance from the nearest populated areas.
Calculating Boundary Equations
- The boundary between two cells in a Voronoi diagram is the perpendicular bisector of the line segment connecting their sites.
To calculate the equation of this boundary:
- Find the midpoint of the line segment connecting the two sites: $$M=\left(\frac{x_1+x_2}{2}, \frac{y_1+y_2}{2}\right)$$
- Calculate the slope of the line segment: $$m=\frac{y_2-y_1}{x_2-x_1}$$
- Use the negative reciprocal of this slope to find the perpendicular slope: $$m_{\perp}=-\frac{1}{m}$$
- Use the point-slope form of a line equation to write the boundary equation: $$y-y_M=m_{\perp}\left(x-x_M\right)$$
Given two sites $A(1,1)$ and $B(4,5)$:
- Midpoint: $\left(\frac{1+4}{2}, \frac{1+5}{2}\right)=(2.5,3)$
- Slope of $\mathrm{AB}: \frac{5-1}{4-1}=\frac{4}{3}$
- Perpendicular slope: $-\frac{3}{4}$
- Equation: $y-3=-\frac{3}{4}(x-2.5)$
Identifying the Closest Site
To find the site closest to a given point:
- Calculate the distance between the point and each site
- The site with the smallest distance is the closest
Use the distance formula:$$d=\sqrt{\left(x_2-x_1\right)^2+\left(y_2-y_1\right)^2}$$
Calculating Area of a Region
To calculate the area of a cell in a Voronoi diagram:
- Identify the vertices of the cell
- Use these vertices to divide the cell into triangles
- Calculate the area of each triangle using the formula: $$A = \frac{1}{2}|x_1(y_2 - y_3) + x_2(y_3 - y_1) + x_3(y_1 - y_2)|$$
- Sum the areas of all triangles
Students often forget that Voronoi cells can be unbounded, extending infinitely in some directions. In such cases, only the finite portion of the cell should be considered for area calculations.
Applications of Voronoi Diagrams
Voronoi diagrams have diverse applications across various fields:
- Urban Planning: Optimizing the placement of public services like hospitals or schools
- Ecology: Studying animal territories or plant distribution
- Meteorology: Interpolating weather data from discrete observation points
- Disease Spread: Modeling the spread of epidemics
- Resource Management: Allocating resources efficiently in a given area
In ecology, Voronoi diagrams can model the territories of animals. Each animal's location becomes a site, and the cells represent the areas they are most likely to inhabit or defend.
Mathematical Foundations
NoteWhile the IB syllabus doesn't require students to construct perpendicular bisectors, understanding their properties is crucial for grasping Voronoi diagrams.
- The perpendicular bisector of a line segment is the set of all points equidistant from the segment's endpoints.
The equation of a perpendicular bisector can be derived using the following steps:
- Find the midpoint of the line segment
- Calculate the slope of the line segment
- Use the negative reciprocal of this slope to find the perpendicular slope
- Use the point-slope form of a line equation
This process is similar to calculating boundary equations, highlighting the fundamental role of perpendicular bisectors in Voronoi diagrams.
Limitations of Voronoi Diagrams
While Voronoi diagrams are powerful tools for spatial analysis, they have several limitations.
- They assume uniform space, meaning real-world obstacles like rivers, roads, or terrain variations are not considered.
- Additionally, they rely solely on Euclidean distance, which may not accurately represent travel time or accessibility in complex environments.
- In dynamic systems, where sites change over time, Voronoi diagrams require constant updates, making them computationally expensive.
- Furthermore, they do not account for variations in site influence—some locations may exert a stronger effect beyond simple proximity.
These limitations highlight the need for adaptations, such as weighted Voronoi diagrams or alternative spatial models, in practical applications.
