Tree and Cycle Algorithms in Graph Theory

Undirected Graphs and Basic Concepts

In graph theory, an undirected graph is a set of vertices connected by edges, where the edges have no direction.
This forms the basis for many important algorithms in computer science and operations research.

Key concepts include:

Walk: A sequence of vertices and edges, allowing repetition
Trail: A walk with no repeated edges
Path: A walk with no repeated vertices
Circuit: A trail that starts and ends at the same vertex
Cycle: A path that starts and ends at the same vertex, with no repeated vertices except the start and end vertex.

Example

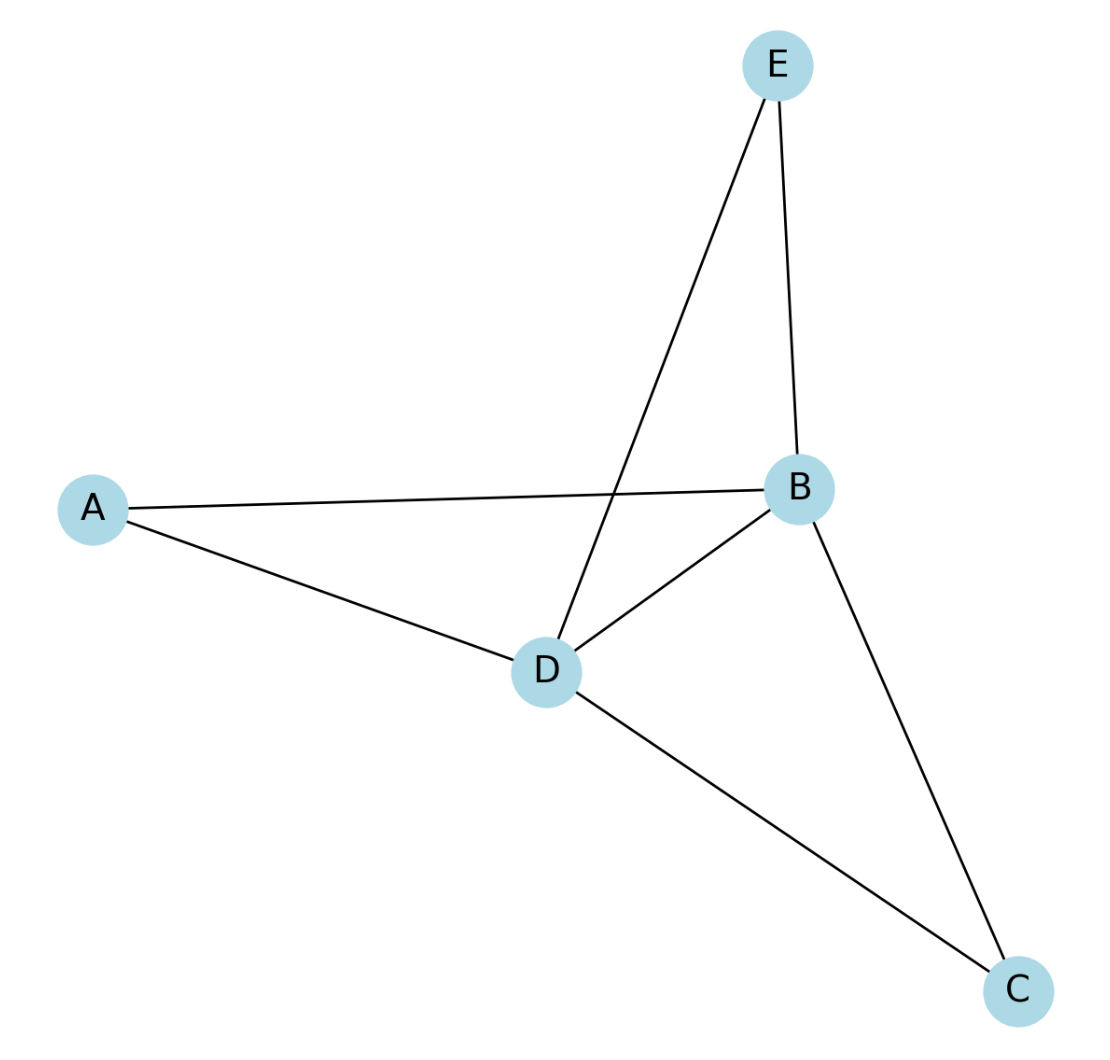

Consider the undirected graph shown in the diagram.

Walk: A sequence of vertices where consecutive vertices are connected by an edge.
- Example: $ A \to B \to C \to D \to B \to E $
Trail: A walk in which no edge is repeated.
- Example: $ A \to B \to C \to D \to E $
Path: A trail in which no vertex is repeated.
- Example: $ A \to B \to D \to E $
Circuit: A trail that starts and ends at the same vertex.
- Example: $ A \to B \to C \to D \to B \to A $
Cycle: A path that starts and ends at the same vertex with no repeated edges or vertices (except the start/end vertex).
- Example: $ A \to B \to C \to D \to A $

Eulerian Trails and Circuits

An Eulerian trail is a trail that uses every edge in a graph exactly once.
An Eulerian circuit is an Eulerian trail that starts and ends at the same vertex.

To determine if an Eulerian trail or circuit exists:

For an Eulerian circuit: All vertices must have even degree.
For an Eulerian trail: Exactly two vertices must have odd degree (these will be the start and end vertices).

Note

The degree of a vertex is the number of edges connected to it.

Hamiltonian Paths and Cycles

A Hamiltonian path is a path that visits each vertex exactly once.
A Hamiltonian cycle is a Hamiltonian path that returns to the starting vertex.

Tip

Unlike Eulerian trails, there's no simple rule to determine if a Hamiltonian path or cycle exists in a general graph. This leads to the famous Traveling Salesman Problem, which we'll discuss later.

Common Mistake

Students often confuse Eulerian and Hamiltonian concepts. Remember: Eulerian deals with using all edges once, while Hamiltonian deals with visiting all vertices once.

Example

Consider the following graph with vertices:
$$V=\{A, B, C, D, E, F\}$$
and edges:
$$E=\{(A, B),(A, C),(B, D),(B, E),(C, D),(C, F),(D, E),(E, F)\}$$
A valid Hamiltonian Path for this graph could be:
$$A \rightarrow B \rightarrow E \rightarrow D \rightarrow C \rightarrow F$$
Each vertex is visited exactly once, but the path does not necessarily return to $\mathbf{A}$.
