Practice 3. Modelling with authentic IB Design Technology (DT) exam questions for both SL and HL students. This question bank mirrors Paper 1, 2, 3 structure, covering key topics like materials and processes, product design, and sustainability. Get instant solutions, detailed explanations, and build exam confidence with questions in the style of IB examiners.
Paper
Level
Question 1
SLPaper 1
What type of prototype is designed to collect quantitative data to help inform development?
Question 2
HLPaper 1
Which of the following rapid prototyping techniques does not require structural supports during the build?
Question 3
HLPaper 1
Which type of analysis would you use to simulate unknown factors, such as stresses within a joint, in products?
Question 4
SLPaper 1
Which of the following types of modelling involves using software to create and modify design representations?
Question 5
SLPaper 1
In graphical modelling, which type of drawing is used to represent a three-dimensional object where the height and width are shown at full scale, and the depth is represented on a -degree angle to the horizontal?
Question 6
SLPaper 1
Which of the following rapid prototyping techniques is best suited for creating highly detailed models by curing liquid photopolymer resin with a UV laser, layer by layer?
Question 7
SLPaper 1
Which of the following is a primary benefit of using conceptual modelling in the design process?
Question 8
SLPaper 1
Which of the following is a primary advantage of using Computer-Aided Design (CAD) software in the design process?
Question 9
SLPaper 1
What is one benefit of rapid prototyping for the designer?
Question 10
SLPaper 2
Drones have become more widespread and can be used for leisure, business or militarypurposes. A drone is operated using a handset, see Figure 1.

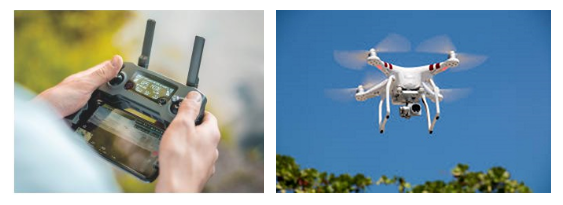

Figure 1: A drone and its handset
1.[2]
List two reasons why temporary joining techniques are used when a droneis assembled.
2.[3]
Explain why finite element analysis (FEA) would be used in the development ofthe drone.
3.[6]
Explain two ways that drones can become obsolete.
4.[9]
Explain how the study of human factors can be used to improve the comfort, safety and performance of the handset that controls the drone.
